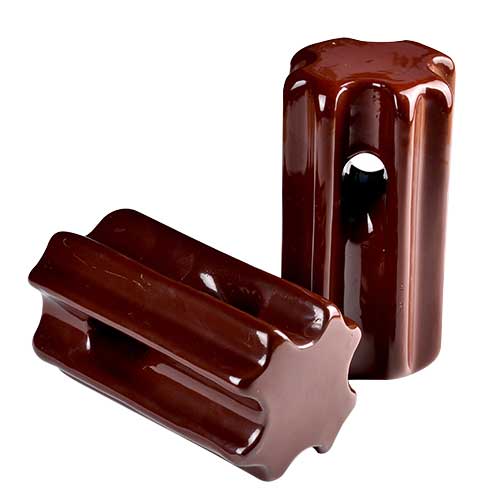

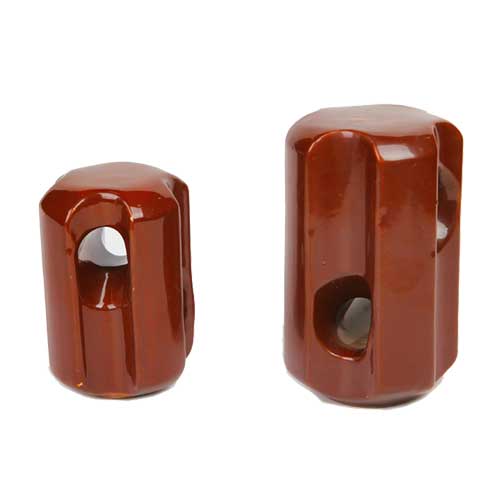

Porcelain Stay Insulator

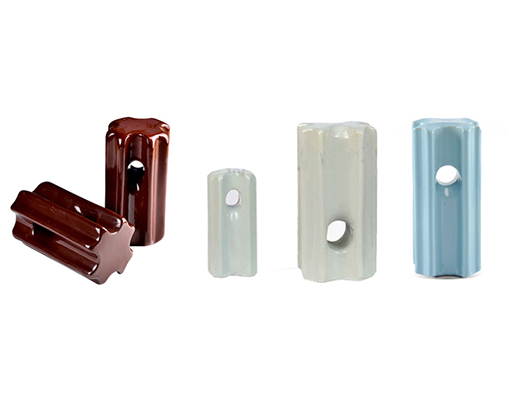

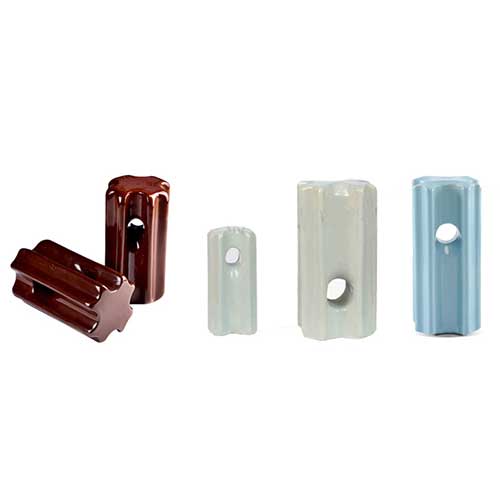

Voltage: 400v-33kv Usage: Pull or steer the wire Color: Brown,grey,white Type: Strain insulators, reel, shackle, spool insulators
Share:
Product Description
Product Introduction:
The Porcelain Stay Insulator is a high-performance insulating component designed to enhance the stability and reliability of power transmission systems. Made from premium wet process porcelain, these insulators are engineered to provide excellent electrical insulation and mechanical strength.
Product Details:
Material: High-quality wet process porcelain, known for its superior strength and insulating properties.
Design: Specifically shaped to offer optimal support and stability for conductors and overhead lines.
Application: Widely used in power transmission and distribution systems, particularly where high mechanical loads and electrical stresses are present.
Key Features:
Exceptional Insulation: Provides high electrical resistance to ensure safety and prevent electrical leakage.
Mechanical Strength: Designed to withstand significant mechanical forces, making it suitable for heavy-duty applications.
Water and Dirt Shedding: The porcelain material is non-porous, allowing it to shed water and resist dirt accumulation.
Structural Features:
Solid Core Design: Features a solid core for added strength and puncture resistance, ensuring long-term durability.
Optimized Profile: The insulator’s profile is optimized for uniform distribution of mechanical stress, reducing the risk of breakage.
Galvanized Metal Fittings: Where applicable, metal components are galvanized for enhanced corrosion resistance and a secure fit.
Installation Process:
Site Assessment: Evaluate the installation site to ensure it meets the requirements for supporting the mechanical loads of the insulator.
Insulator Placement: Position the Porcelain Stay Insulator according to the design specifications, ensuring correct alignment with the conductors.
Secure Attachment: Attach the insulator securely to the supporting structure using appropriate fittings and fasteners.
Integrity Check: Conduct a thorough inspection to confirm the insulator is properly installed and free from defects.
Applicable Environmental Conditions:
Temperature Tolerance: Capable of withstanding a wide range of temperatures, typically from -50°C to +100°C, suitable for diverse climates.
UV Resistance: The porcelain material is resistant to UV radiation, ensuring the insulator’s longevity in outdoor environments.
Chemical Resistance: The insulator is resistant to common chemicals and pollutants, maintaining its structural integrity over time.
Humidity and Wet Conditions: Engineered to perform well in high humidity and wet environments, preventing flashover and leakage.
Specifications
Stay insulators are low voltage insulators designed to fasten and counterweight dead-end poles by connecting with stay wires or guy grips. They prevent electric conduction accidents on stay wires, ensuring stability and safety. Typically used on 11kV and 33kV overhead line networks, L&R stay insulators are made of glazed porcelain per BS137 standards, suitable for outdoor operation.

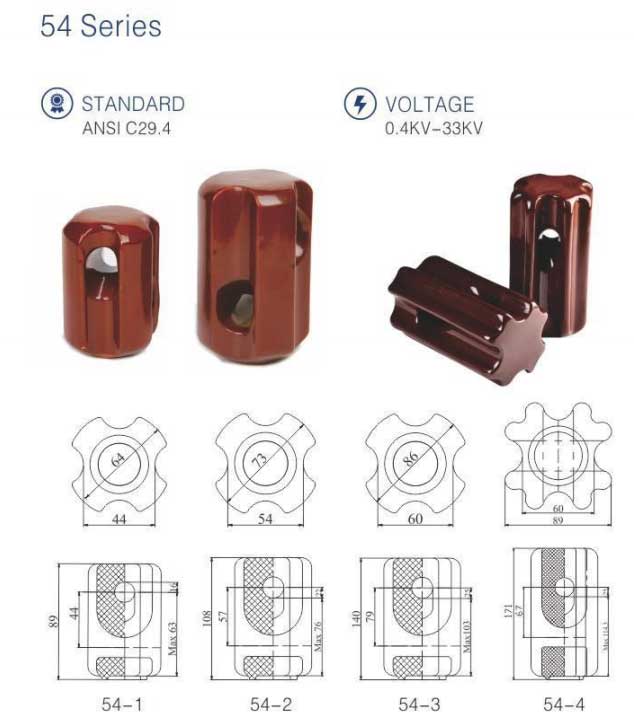

| ANSI CLASS | 54-1 | 54-2 | 54-3 | 54-4 | |
| Dimensions mm |
Height | 89 | 108 | 140 | 171 |
| Hole Centers Spacing |
44 | 57 | 79 | 67 | |
| nner Diameter | 44 | 54 | 60 | 60 | |
| Outer Diameter | 64 | 73 | 86 | 89 | |
| Hole Diameter | 16 | 22 | 25 | 25 | |
| Height to Hole | Max 63 | Max 76 | Max 103 | Max 114.3 | |
| Mechanical Failing Load,kN | 44 | 53 | 89 | 89 | |
| Power Frequency Flashover Voltage |
Dry,kV | 25 | 30 | 35 | 40 |
| Wet,kV | 12 | 15 | 18 | 23 | |
| Net Weight,kgs | 0.5 | 0.65 | 1.2 | 22 | |

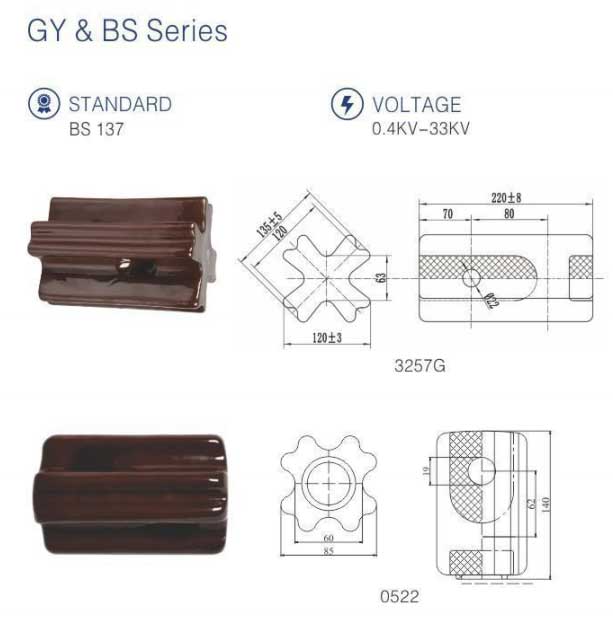

| Guy Strain Insulators for Lines | BS 137 | |||
| Type | 1075 | 0522 | 3257G | |
| Dimensions mm |
Height | 78 | 140 | 220 |
| Hole Center Distance |
50 | 62 | 80 | |
| nner Diameter | 37 | 60 | 120 | |
| Outer Diameter | 57 | 85 | 135 | |
| Hole Diameter | 19 | 19 | 22 | |
| Mechanical Failing Load,kN | 45 | 110 | 110 | |
| Power Frequency Flashover Voltage |
Dry,kV | 30 | 35 | 52 |
| Wet,kV | 15 | 20 | 48 | |
| Net Weight,kgs | 1 | 1.4 | 4.8 | |
Product Advantages
1. Safety: Prevents accidental electric conduction on stay wires, enhancing safety. By isolating the stay wire from the pole, the insulator ensures that the stay wire does not become a path for electrical current, thereby reducing the risk of electrical accidents and improving overall safety for maintenance personnel and the public.
2. Stability: Secures and counterweights dead-end poles, preventing collapse. The stay insulator provides crucial mechanical support to the poles, especially at the ends of the line, where the tension is greatest. This helps in maintaining the structural integrity of the poles and prevents them from bending or collapsing under the load of the overhead conductors.
3. Versatility: Suitable for 11kV and 33kV overhead line networks. These insulators are designed to be used in various voltage levels, making them adaptable to different types of electrical distribution systems. Their versatility allows them to be effectively used in both medium and high-voltage applications.
4. Durability: Made of glazed porcelain according to BS137 standards, ideal for outdoor use. The use of high-quality glazed porcelain ensures that the insulators are resistant to weathering, pollution, and mechanical wear. Compliance with BS137 standards guarantees their reliability and performance in harsh outdoor environments.
5. Flexible Connection: Features two holes for various installation methods. The design includes two holes that allow for flexible and secure attachment to the stay wire and pole. This versatility in connection options makes installation easier and more adaptable to different pole and stay wire configurations.
6, Customization: Can be designed and customized based on customer specifications and drawings. Manufacturers can tailor the design and dimensions of the insulators to meet specific requirements and drawings provided by customers, ensuring that the product fits perfectly into their unique infrastructure needs and operational conditions.
Application Places

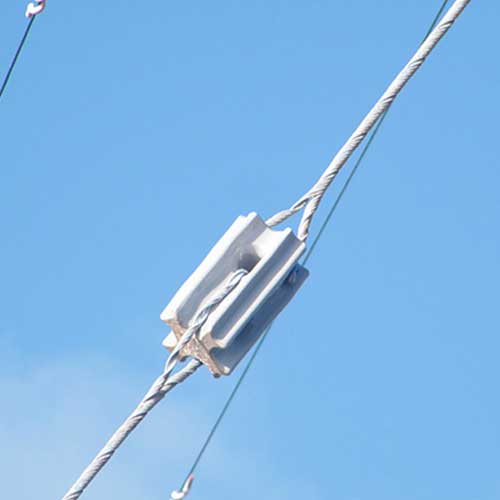

Stay insulators, used on stay wires, ensure wires don’t touch the ground if they break.
These insulators are crucial when poles fall or stay wires snap due to excess mechanical load, making them essential for overhead transmission lines.
Typically installed in the middle of stay wires, they prevent voltage in the lower portion of conductors if poles break. Their reliable performance ensures the safety and stability of power systems.
