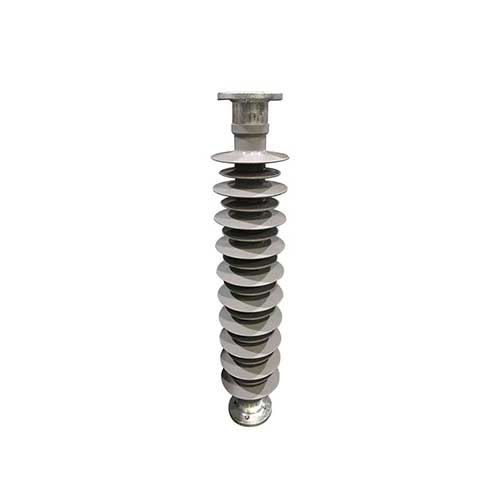

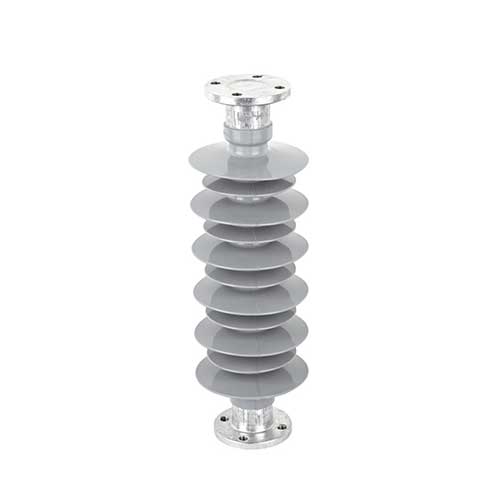

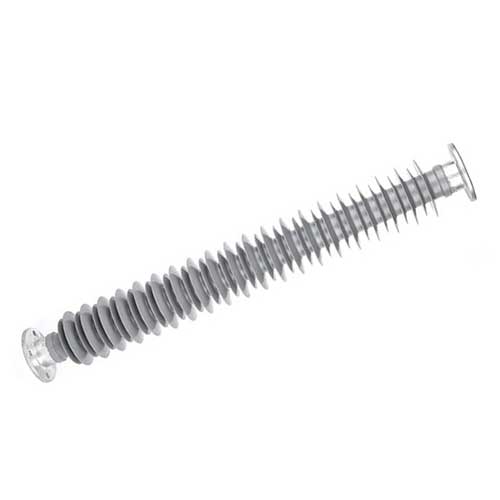

Composite Post Insulator
Voltage: 10kv-500kv
Parts: One stack or more stacks mounted
Material: HTV silicone rubber, fiber glass core rod
Type: For substation, for apparatus
Share:
Product Description

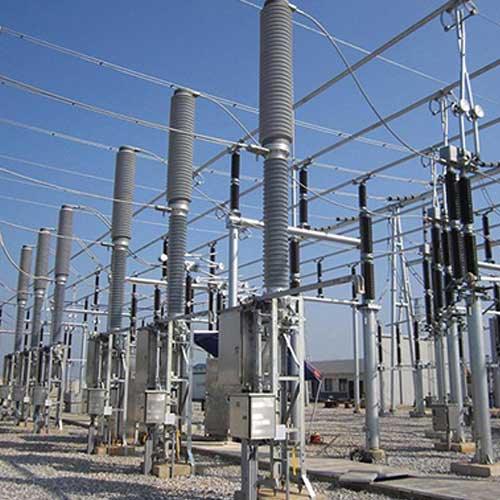

Composite post insulators are used in outdoor substations or apparatus. They provide insulation and supporting. The both end fittings can be the same or different, they are decided by the connection of other equipments.
According to different application area, the mechnical load can be compression strength, cantilever strength, tensile and torsional strength. Specified mechnical load can be got by failing load test. When the insulator get its SML, the post insulator doesn’t break, but have a deflection. The insulator should meet the deflection requirement as per standard. MDCL is also a important parameter for composite post insulators, normally it is as much as 50% of the SCL.
Standard: ANSI C29.11, ANSI C29.19, IEC 61952, IEC62217
Main Technical Parameter (IEC61952,IEC61109)
| Model | Rated Voltage (kV) |
Rated Mechanica Bending Load (kN) |
Structure Height (mm) |
Minimum Arc Distance (mm) |
Minimum Creepage Distance (mm) |
Lightning Impulse Withstand Voltage,peak(kV) |
P.F 1min wet withstand voltage KV) |

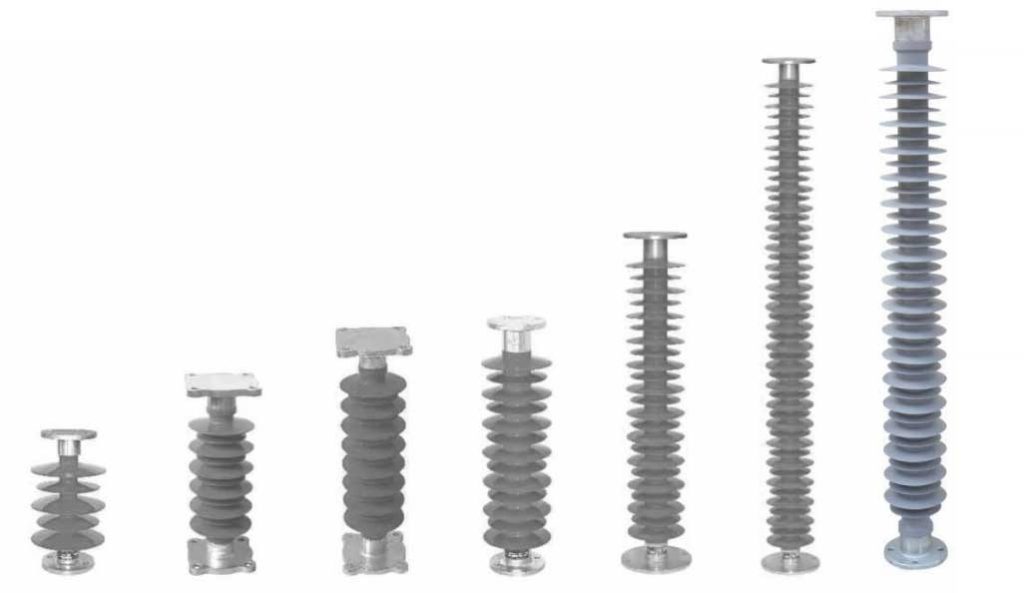

| FZSW-11/10 | 11 | 10 | 255 | 175 | 600 | 145 | 45 |
| FZSW-24/10 | 24 | 10 | 300 | 210 | 630 | 145 | 65 |
| FZSW-33/10 | 33 | 10 | 450 | 270 | 900 | 200 | 95 |
| FZSW-33/10 | 33 | 10 | 400 | 285 | 1060 | 200 | 95 |
| FZSW-66/10 | 66 | 10 | 760 | 630 | 1940 | 350 | 185 |
| FZSW-110/10 | 110 | 10 | 1220 | 1060 | 3260 | 450 | 200 |
| FZSW-220/10 | 220 | 10 | 2550 | 2050 | 6520 | 950 | 395 |
Note:We can produce as per customer’s requirements.
