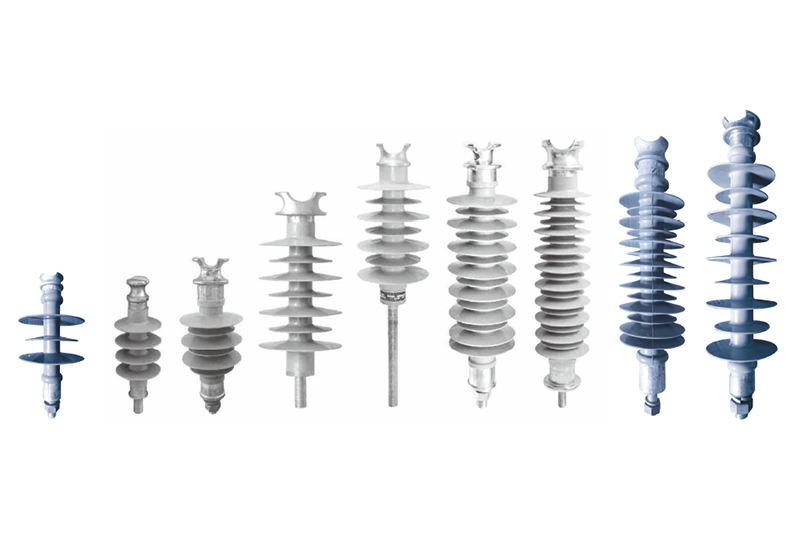

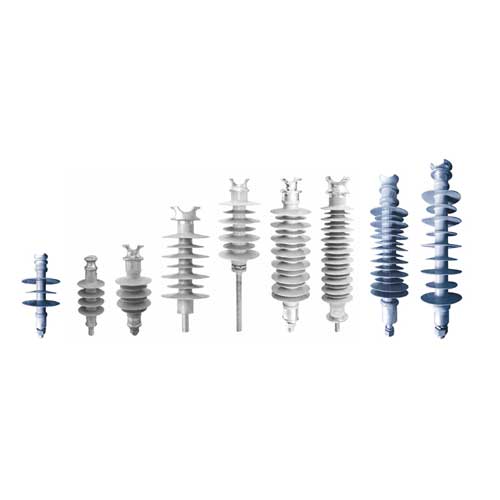

Composite Pin Insulator
Voltage: 11kv-36kv
Fitting: Tie tip fitting and cap base fittings
Material: HTV silicone rubber, fiber glass core rod
Type: Steel, HDPE or nylon head, silicone rubber covered head
Share:
Product Description

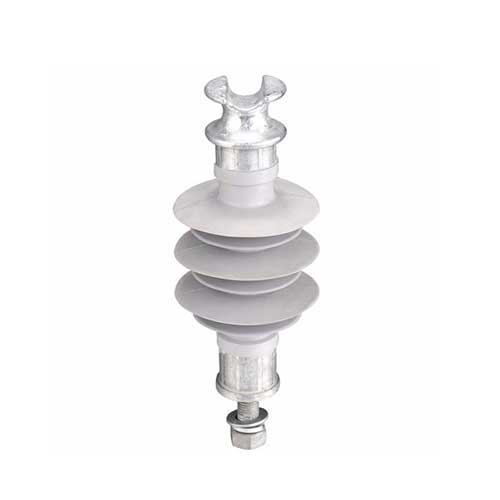

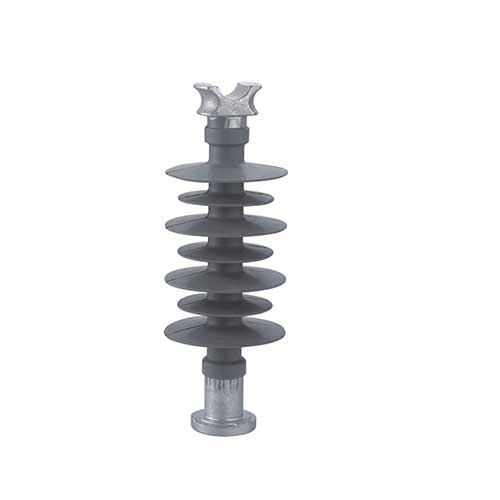

In distribution lines, composite tie top line post insulators are the same as composite pin type insulators. The base fitting is the cap which assemble with the crossarm by steel studs. The head fitting can be steel type, or HDPE type, nylon type or silicone rubber covered types.

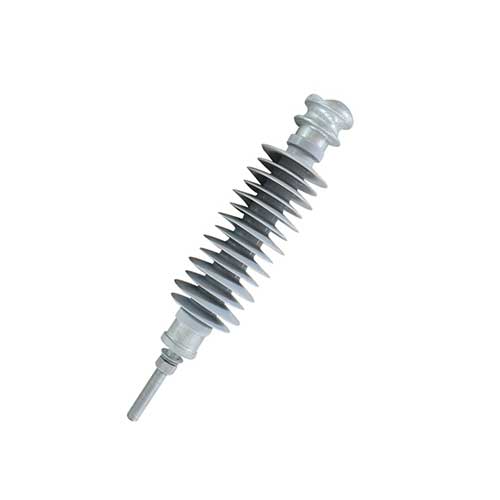

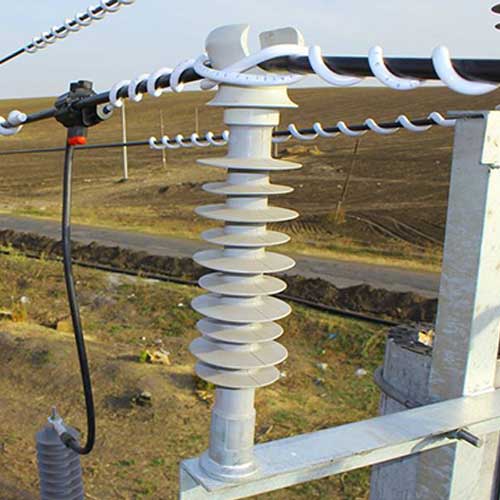

Composite line post insulators with clamps can hold the conductors directly, which can be mounted vertically or horizontally. The clamps can be steel or aluminum alloy materials. The base fitting can be caps or gain fittings.
Rated Voltage: 10kv to 132kv Top Fitting: Vertical or horizontal clamptop or blade style end fitting Base Fitting: Detachable gain base uesed on round poles or detachable flat base or cap base Standard: ANSI C29.11, ANSI C29.17, ANSI C29.18, IEC 61952, IEC62217
Main Technical Parameter(IEC61952,IEC61109)
| Model | Rated Voltage (kV) |
Rated Mechanica Bending Load (kN) |
Structure Height (mm) |
Minimum Arc Distance (mm) |
Minimum Creepage Distance (mm) |
Lightning Impulse Withstand Voltage,peak(kV) |
P.F 1min wet withstand voltage (kV) |
| FPQ-11/10 | 11 | 10 | 300 | 180 | 450 | 105 | 45 |
| FPQ-11/12.5 | 11 | 12.5 | 320 | 195 | 450 | 95 | 45 |
| FPQ-15/12.5 | 15 | 12.5 | 280 | 160 | 665 | 145 | 65 |
| FPQ-24/10 | 24 | 10 | 390 | 225 | 744 | 145 | 65 |
| FPQ-24/12.5 | 24 | 12.5 | 390 | 225 | 744 | 145 | 65 |
| FPQW-33/10 | 33 | 10 | 430 | 325 | 1080 | 200 | 70 |
| FPQW-33/10 | 33 | 10 | 495 | 380 | 900 | 200 | 116 |
| FPQW-33/10 | 33 | 10 | 510 | 340 | 1200 | 170 | 70 |
| FPQW-33/12.5 | 33 | 12.5 | 470 | 345 | 1200 | 230 | 95 |
| FPQW-33/20 | 33 | 20 | 545 | 405 | 1650 | 265 | 135 |
Note:We can produce as per customer’s requirements.
Certificate Display
Factory Tour
Why choose us?
Professional
Professional
Fast Delivery
Fast Delivery
Good Price
Good Price
High Quality
High Quality
FAQs
Who are we?
We are Manufacturer more than 21 years experience in Binzhou City, shangdong, China. We start from 2004, sell to Domestic Market(52.00%), Eastern Asia(25.00%), Africa(10.00%), Mid East(6.00%),Southeast Asia(4.00%),South Asia(3.00%). There are total about 301-500 people in our office.
How can we guarantee quality?
What can you buy from us?
House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.
Why should you buy from us not from other suppliers?
hengwang cable company has passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001\German TUV certification\CE certification, the company is a finalist for the state power grid and a national”High-tech Enterprise.
What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian
If I need customize Packing Cartons, is that available?
Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !
