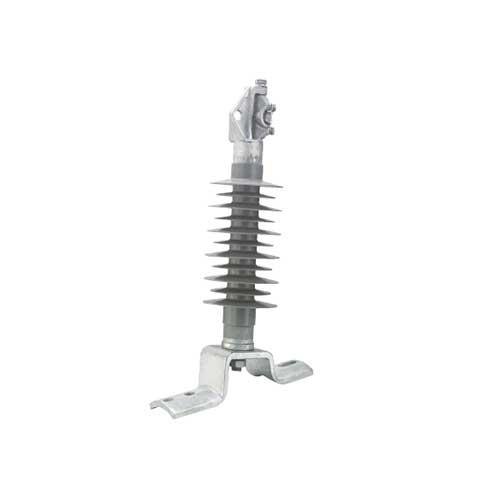

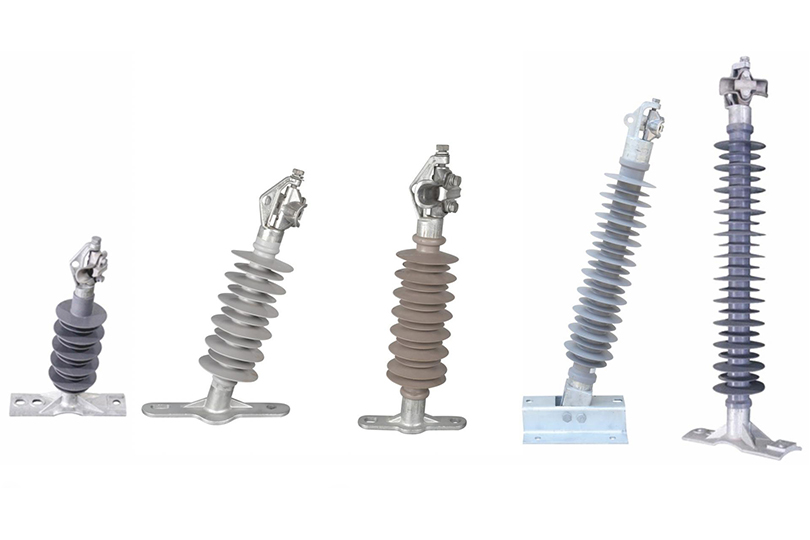

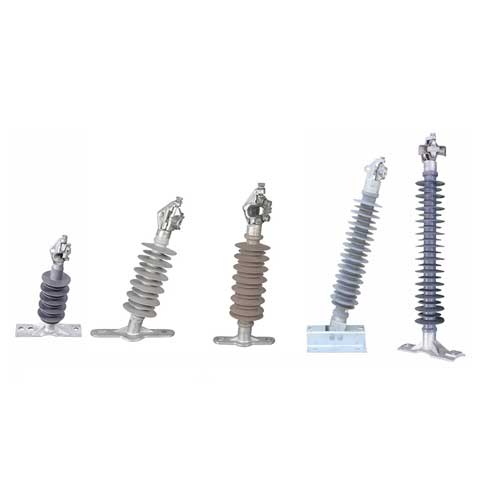

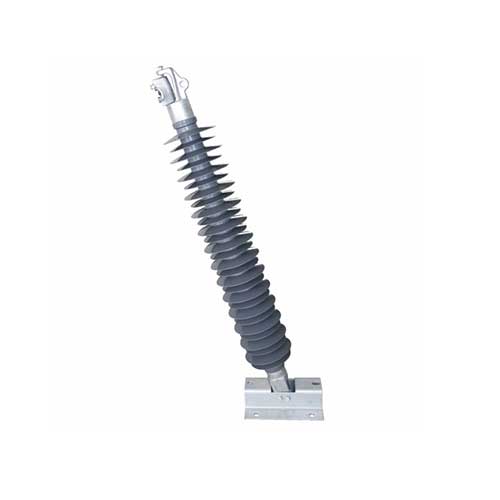

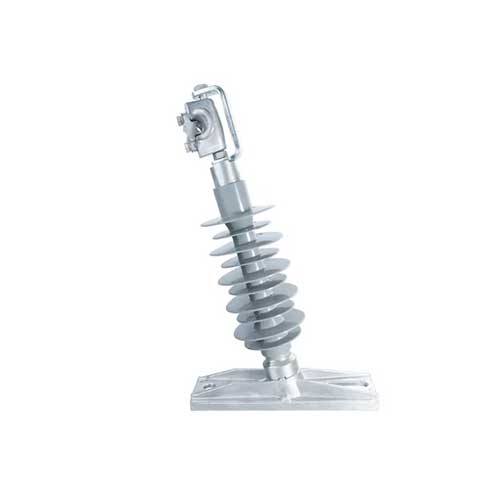

Composite Line Post Insulator
Voltage: 10kv-132kv
Direction: Horizontal or vertical mounted
Material: Htv silicone rubber, fiber glass core rod
Type: Tie top or clamp top
Share:
Product Description
In distribution lines, composite tie top line post insulators are the same as composite pin type insulators. The base fitting is the cap which assemble with the crossarm by steel studs. The head fitting can be steel type, or HDPE type, nylon type or silicone rubber covered types.

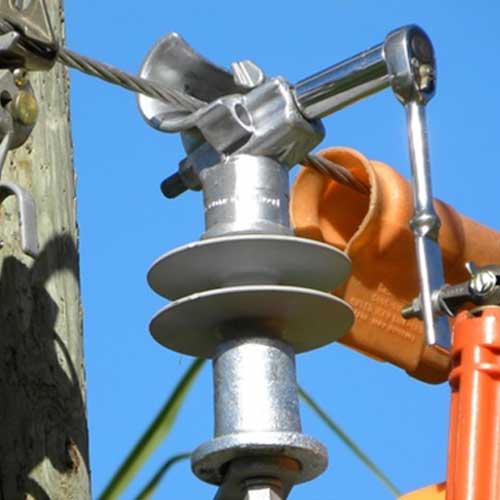

Composite line post insulators with clamps can hold the conductors directly, which can be mounted vertically or horizontally. The clamps can be steel or aluminum alloy materials. The base fitting can be caps or gain fittings.
Rated Voltage: 10kv to 132kv Top Fitting: Vertical or horizontal clamptop or blade style end fitting Base Fitting: Detachable gain base uesed on round poles or detachable flat base or cap base Standard: ANSI C29.11, ANSI C29.17, ANSI C29.18, IEC 61952, IEC62217
Main Technical Parameter (IEC61952,IEC61109)
| Model | Rated Voltage (kV) |
Rated Mechanical Bending Load (kN) |
Structure Height (mm) |
Minimum Arc Distance (mm) |
Minimum Creepage Distance (mm) |
Lightning Impulse Withstand Voltage,peak (kV) |
P.F 1min wet withstand voltage (KV) |
| FZSW-11/10 | 11 | 10 | 405 | 165 | 430 | 95 | 45 |
| FZSW-24/10 | 24 | 10 | 450 | 320 | 700 | 125 | 65 |
| FZSW-33/10 | 33 | 10 | 570 | 320 | 1080 | 220 | 145 |
| FZSW-33/20 | 33 | 20 | 590 | 358 | 1200 | 200 | 95 |
| FZSW-66/10 | 66 | 10 | 760 | 630 | 1940 | 350 | 185 |
| FZSW-66/12.5 | 66 | 12.5 | 1050 | 790 | 2248 | 350 | 185 |
Note:We can produce as per customer’s requirements.
