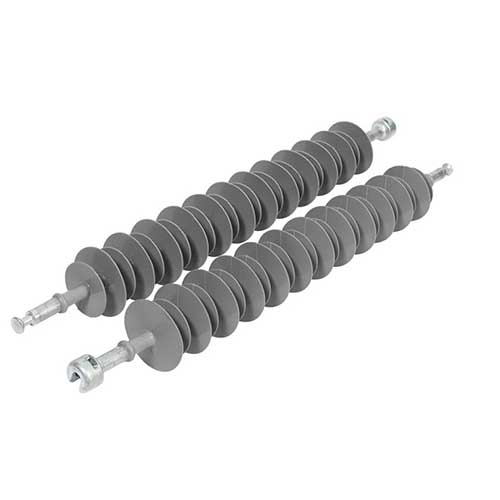

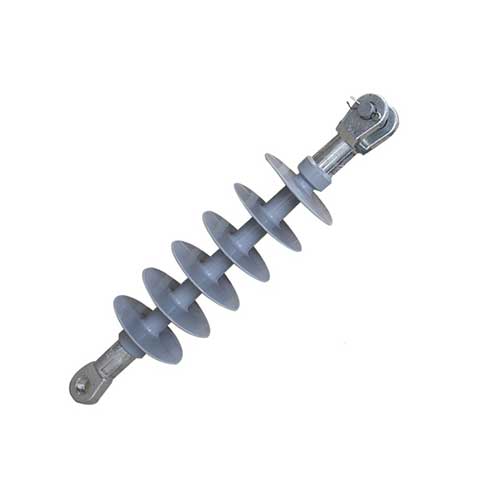

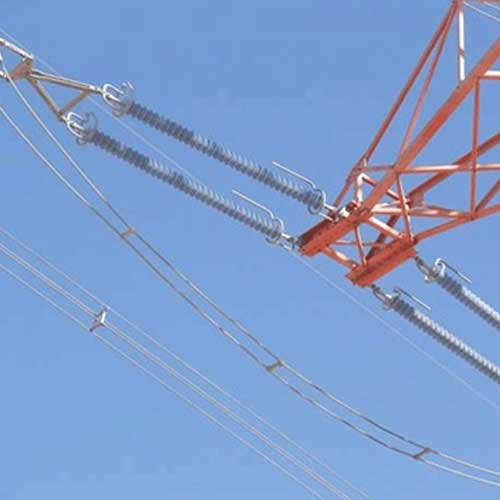

Composite Suspension/Tension Insulator
UNI Electric Group., with the product brand of “UNI Electric”, is a high-tech enterprise integrating industrial manufacturing, import and export trade, specializing in the production of transmission and distribution line products, high and low voltage transmission and distribution switchgear and other transmission and distribution industries as the leading industries. The main products are: lightning arresters, fuses, insulators, circuit breakers, disconnectors, distribution cabinets, power fittings, etc.
Share:
Product Description

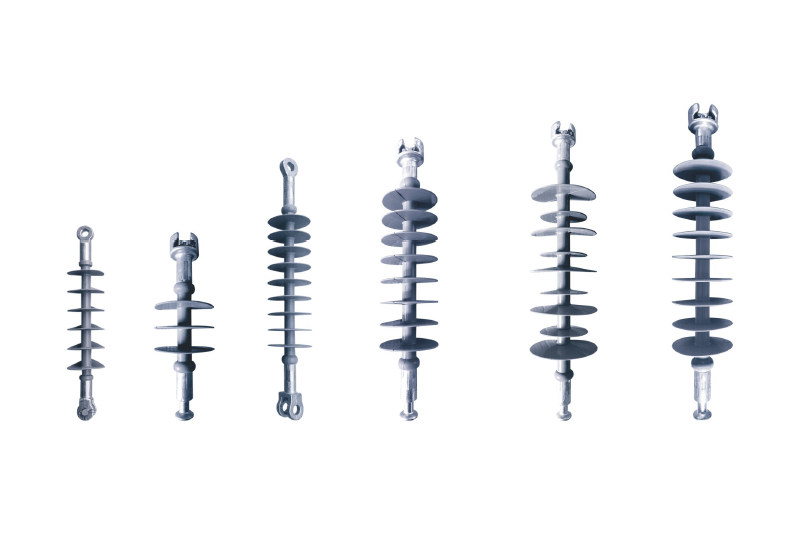

Composite Insulator
Feature
●High mechanical strength,epoxy fiber glass rod tension strengthis double of normal steel,8-10 times of porcelain materials.
●High performance against pollution &flashover,the wetwithstand voltage is 2-2.5 times of porcelain insulator at samecreepage distance.
●Good performance of hydrophobicity.
●Smallvolume&Light weight,easy for transportation.Therefore,it is a new generation for electric power line.

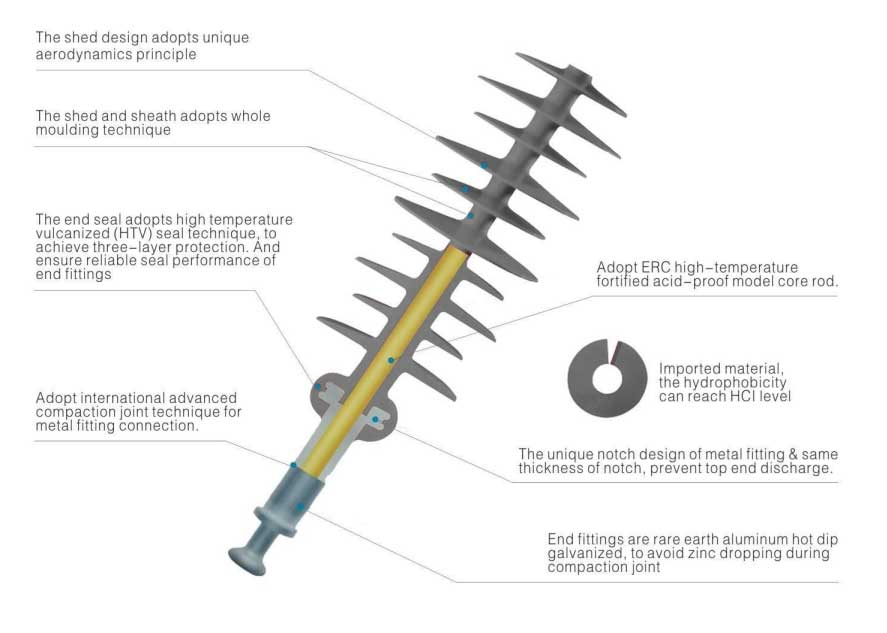

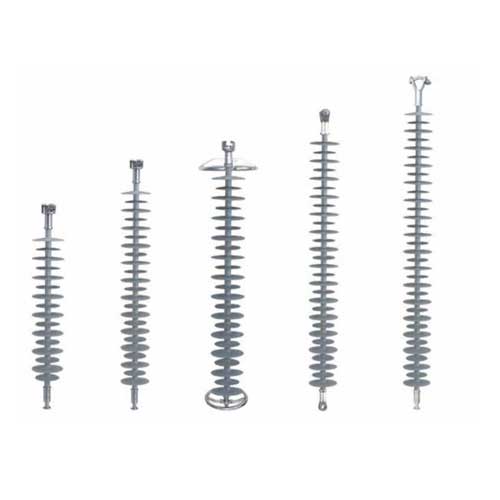

Structure
Composite insulator is made of Fibre Glass Core Rod,SiliconeRubber Shed and Metal Fitting.The silicone rubber shed adoptthe whole pressure technique,which solves the main problem ofinterface electric spark puncture.Connection the fibreglass rodwith metal fittings adopts advanced crimping technology.Galvanized end fittings can be anti corrosion.
Model Designation
| ① | Composite Materia |
| ② | XB:Suspension/Tension ZS:Post PQ:Pin |
| ③ | W:Big/Small shed X:Hang type |
| ④ | Creepage Distance Symbol |
| ⑤ | Rated voltage(kV) |
| ⑥ | Rated Mechanical Failing Load(kN) |
Composite Suspension/Tension Insulator

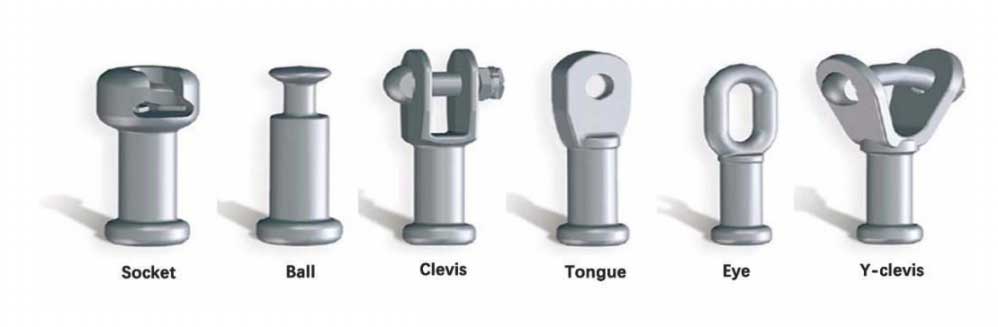

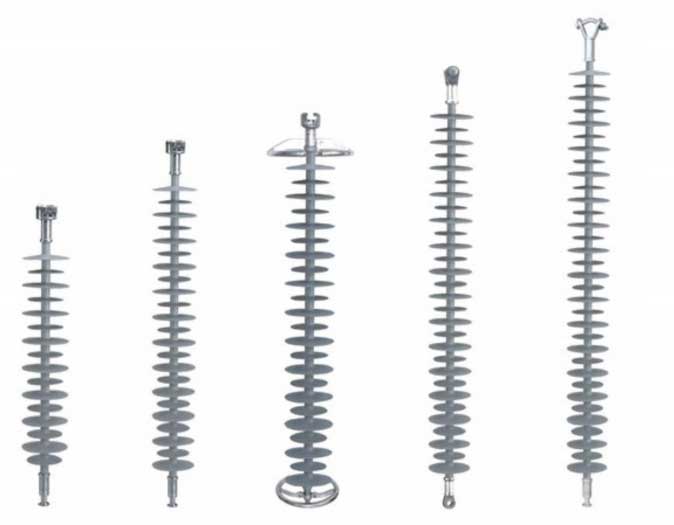

End Fitting
The end fittings are in accordance with IEC 61466-1 (Composite string insulator units for overhead lines with a nominal voltage greater than 1000V – Part 1: Standard strength and end fittings). ANSI standard also available.
Composite Suspension/Tension Insulator
Main Technical Parameter (IEC 61109)
| Model | Rated Voltage (kV) |
Rated Mechanical Failing Load (kN) |
Length (mm) |
Minimum Arc Distance (mm) |
Minimum Creepage Distance (mm) |
Lightning Impulse Withstand Voltage,peak(kV) |
P.F imin wet withstand voltage (kV) |
Coupling Size |
| FXB-11/70 | 11 | 70 | 330 | 160 | 300 | 95 | 45 | 16 |
| FXB-11/80 | 11 | 80 | 370 | 200 | 450 | 95 | 45 | 16 |
| FXB-24/70 | 24 | 70 | 410 | 240 | 750 | 125 | 65 | 16 |
| FXB-24/100 | 24 | 100 | 450 | 240 | 750 | 125 | 65 | 16 |
| FXB-24/120 | 24 | 120 | 450 | 240 | 750 | 125 | 65 | 16 |
| FXB-33/70 | 33 | 70 | 530 | 360 | 900 | 200 | 95 | 16 |
| FXB-33/80 | 33 | 80 | 590 | 425 | 1080 | 220 | 95 | 16 |
| FXBW-33/70 | 33 | 70 | 655 | 480 | 1260 | 220 | 105 | 16 |
| FXBW-33/100 | 33 | 100 | 695 | 480 | 1260 | 220 | 105 | 16 |
| FXBW4-66/70 | 66 | 70 | 870/940 | 710 | 2248 | 410 | 185 | 16 |
| FXBW4-66/100 | 66 | 100 | 870/940 | 710 | 2248 | 410 | 185 | 16 |
| FXBW4-110/100 | 110 | 100 | 1240/1440 | 1000/1200 | 3150/3860 | 550 | 230 | 16 |
| FXBW4-110/160 | 110 | 160 | 1340 | 1000 | 3380 | 550 | 230 | R20 |
| FXBW4-145/120 | 145 | 120 | 1480 | 1240 | 4123 | 725 | 355 | 16 |
| FXBW4-220/100 | 220 | 100 | 2240/2350/ 2470 |
2020/2080/ 2210 |
6450/6760/ 7150 |
1000 | 395 | 16 |
| FXBW4-330/160 | 330 | 160 | 2990 | 2600 | 9075 | 1425 | 570 | R20 |
| FXBW4-220/ 210(160) |
220 | 210/160 | 2350 | 2000 | 6800 | 1000 | 230 | R20 |
| FXBW4-330/ 210(160) |
330 | 210/160 | 2930 | 2650 | 8790 | 1425 | 570 | R20 |
| FXBW4-500/ 210(160) |
500 | 210/160 | 4450 | 4075 | 14860 | 2050 | 740 | R20 |
Note:
1.We can produce as per customer’s requirements.
2.Corona Ring is necessary at 220kV system and above.For application at 220kV&230kV,one corona ring should be assembled at the end of Suspension InsulatorWhile application at 330kV and above,two corona rings should be assembled at both end of insulator.
