Product Description
Product property

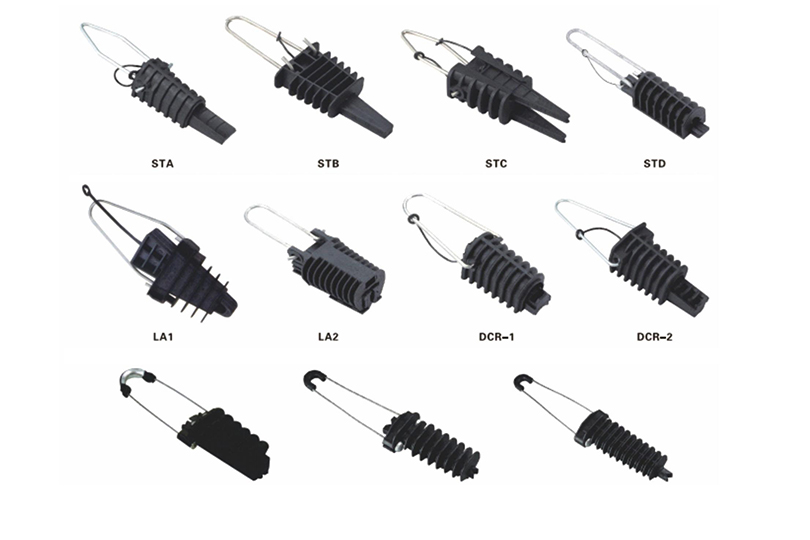

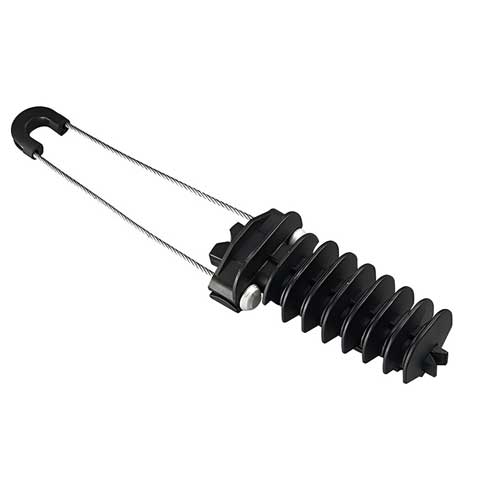

The plastic anchoring clamp is suitable for insulated low-voltage ABC cable.It is also suitable for multiple conductors.Easy installtion andperfect insulated function.It is in accordance with NFC 33-042.
| Material:Nylon plus fibre glass | |
| Type | CrosS-section(mm²) |
| STA | 2×(16-35) |
| STB | 2×(16-25) |
| STC | 4×(16-25) |
| STD | 1×(16-70) |
| LA1 | 4×(16-25) |
| LA2 | 2×(6-16) |
| DCR-1 | 1×(4-25) |
| DCR-2 | 1×(4-25) |
| 2.1 | 1×(16-25) |
| PA1500 | 1×(50-70) |
| PA2000 | 1×(70-120) |

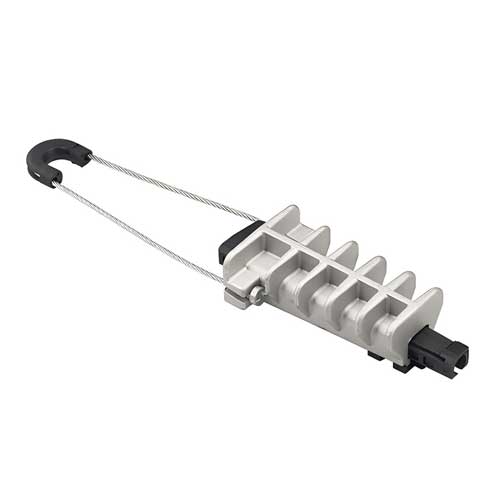

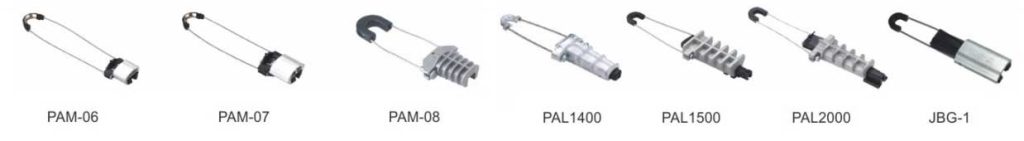

Product property
They are characterized by high mechanical stability,reduced dimensions for easier handing,high mechanical and climatic resistance.Cablegripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath,secured parts,no toolsrequired.Stainless steel bail with two marbles compressed on the end,the conception allows an easier locking on the body of the clamp.Theyare in accordance with NFC 33-041.
| Material:High strength aluminium alloy,nylon plus fiber glass,stainless steel. | |
| Type | Cross-section(mm²) |
| PAM-06 | 16-20 |
| PAM-07 | 16-25 |
| PAM-08 | 16-25 |
| PAL1400 | 35-70 |
| PAL1500 | 35-70 |
| PAL2000 | 70-120 |
| JBG-1 | 50-70 |

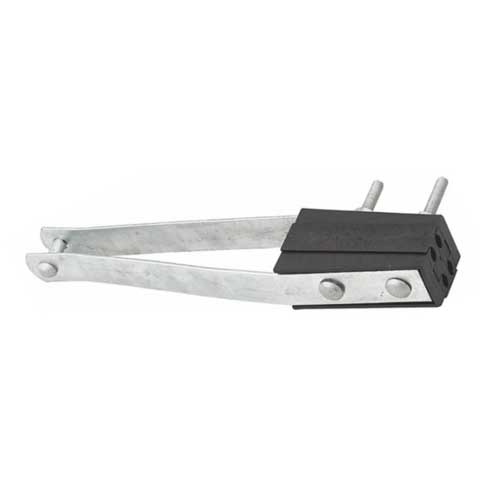

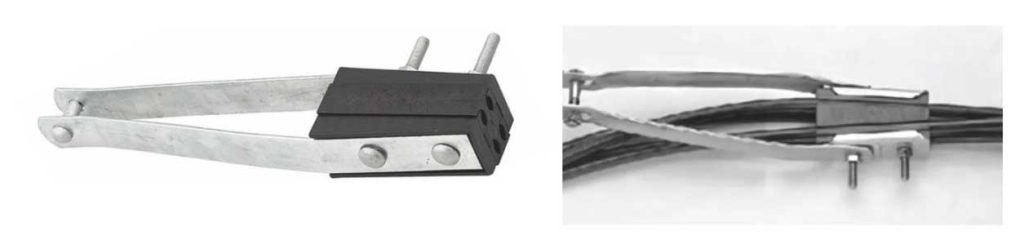

It is used to terminate 4-core of aerial bundle conductor.Its function is fixing and tightening the insulation conductor.
| Material:Mild steel,nylon plus fiber glass | |
| Type | Cross-section(mm²) |
| NES-B0 | 4X(25-125) |
| NES-B1 | 4X(25-35) |
| NES-B2 | 4X(35-50) |
| NES-B3 | 4X(50-70) |
| NES-B4 | 4X(70-95) |
The plastic anchoring clamp is suitable for insulated low-voltage ABC cable.It is also suitable for multiple conductors.Easy installtion andperfect insulated function.It is in accordance with NFC 33-042.
